VOLTAGE RANGE

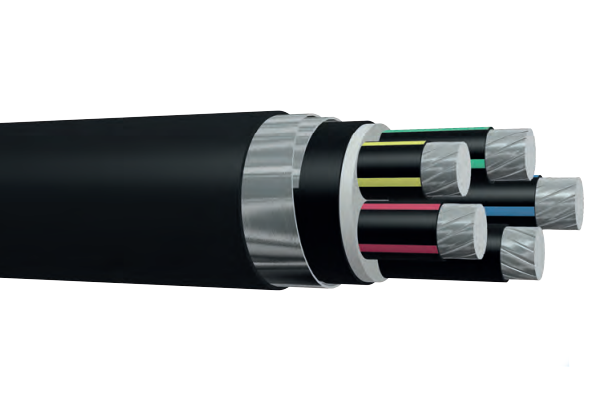

· 0.6/1kV

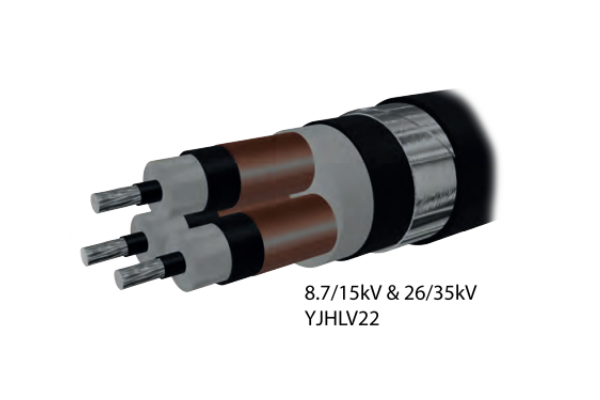

· 8.7/15kV
· 26/35kV
CONDUCTOR
· Class 2 Aluminium Alloy 8000 Series
INSULATION
· XLPE
SHEATH
· PVC / PE / LSZH
ARMOUR
· Galvanised Double Steel Tape
OPERATING TEMPERATURE
· -40°C to 90°C
STANDARD REFERENCES
· IEC 60228 · IEC60331
· IEC 60502 · IEC60754
· IEC 60332 · IEC61034
· BS 6387
DESCRIPTION
Single core and multi core power cable with compact stranded class 2 aluminium alloy 8000 series conductor, XLPE insulated and PVC sheathed and Double Steel Tape armoured. Cable conforms to IEC 60502 and has option for IEC 60332 Flame Retardant Category A, IEC 60331 or BS 6387 Fire Resistant and Low Smoke Zero Halogen.
APPLICATION
Can be installed on dry or humid area, underground cable both indoor and outdoor.
When installed in location with risk of mechanical damages and when extra mechanical protection is required.
Fire resistant model suitable to be used for UPS connection. Withstand heat up to 950 degree Celsius.
